Rj45 Ports Din Rail Ethernet Switch

Name: Rj45 Ports Din Rail Ethernet Switch
Brand: Hioso
Price: 1 USD

Wholesale Rj45 Ports Din Rail Ethernet Switch from china suppliers

Brand Name : Hioso

Model Number : Foway4208TF

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : TT

Supply Ability : 5000pcs/month

Delivery Time : 2-12 working days

Packaging Details : 25X15X10 CM

Name : 8 ports din rali switch

Transmission : 10 / 100M

Power1 : DC 10 ~ 60 V

Power2 : AC 18 ~ 30 V

Work : -40 ~ 75°C

Storage : -40~85°C

Contact Now

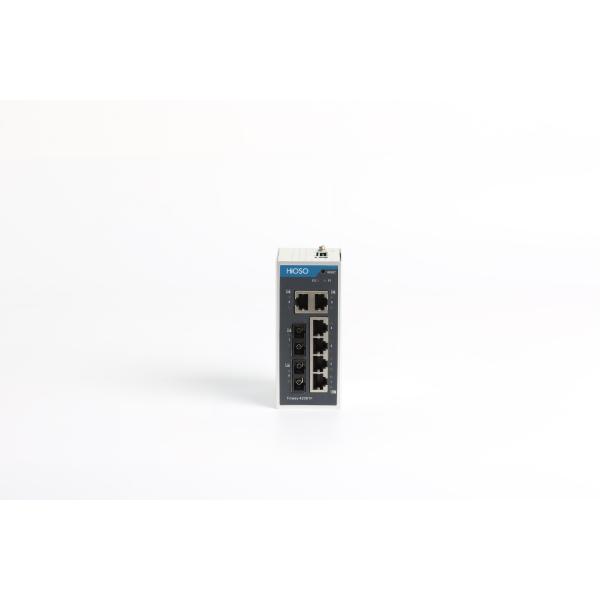

8 Ports Din Rail Ethernet Switch 6 Rj45 Ports + 2 100M Fx Port

Overview

Foway 4208TF series 8 ports Din Rail Type Industrial Ethernet switch, supply 6 10/100M RJ45 ports and 2 100M fiber uplink; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC,support to connect DC power and AC power at the same time.

Foway 4208TF series switches support to work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for most industrial applications. Foway 4205TF series supply DIP switch , support to enable or disable broadcast storm protection,provide another flexible solutions for different industrial applications.

Technical Specification

Access mode	10/100Mbps
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control
Wavelength	850nm/1310nm/1490nm/1550nm
Transmission distance	Dual-fiber multi-mode: 2Km; single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pairs: 100m
Port	6 RJ45 ports: 10/100M 2 100M FX ports: Multi-mode – SC or ST (fiber size: 50,62.5/125μm) Single mode/single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)
Conversion mode	Medium conversion, storing and forwarding/straight-through
MAC address table	I K
Buffer space	1Mbit
Flow control	Full duplex state: flow control; half-duplex state: back pressure mode
Delay	9.6us
Bit error rate	<1/1000000000
MTBF	100,000 hours
LED	FX 100M (fiber rate 100M), TP1/2/3/4/5/6 100M (twisted pair rate 100M) , TP1/2/3/4/5/6 Link (twisted pair link/action);P1 (power supply P1 connected) ,P2(power supply P2 connected), RESET
Power	12/24/48 VDC,18 ~ 30VAC input
Power consumption	4W
Operating temperature	Normal:-10~60°C ;-T(wide range temperature: -40~75°C

Rj45 Ports Din Rail Ethernet Switch
