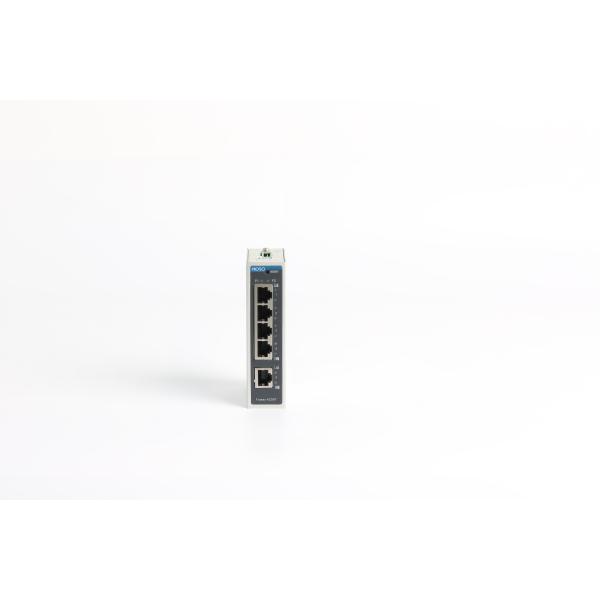

IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W

Product Categories

HiOSO Technology Co., Ltd.

Contact Now

Name: IP30 Metal Case 5 Ports 10100M Panel Mount Ethernet Switch 3W
Brand: Hioso
Price: 1 USD

Brand Name : Hioso

Model Number : Foway4205T

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : TT

Supply Ability : 5000pcs/month

Delivery Time : 2-12 working days

Packaging Details : 25*15*10 cm

Name : Din Rail Switch

Ports : 5 10/100M rj45 ports

Transmisson rate : 100Mbps

MAC address : 8K

Black casing : metal

Consumption : 3W

Contact Now

5 Ports 10 / 100M Din Rail Ethernet Switch Support High Temperature

Character

l 10 / 100M adaptive RJ45 ports, support MDI and MDI-X auto recognition

l Provide 2 RPS (Redundant power supply) input : 10~ 60 VDC and 18 ~ 30VAC,with reverse connection

l Support maximum 1552 byte long frame data packet transmission

l DIP switch supports to enabled/disable broadcast storm function

l Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

l With IP30 metal case; support din rail or wall mounting installation

Parameter	Specification
Access mode	10/100Mbps
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control
Transmission distance	Category-5 twisted pairs: 100m
Port	5 10/100M RJ45 ports: Connected to STP/UTP category-5 twisted pairs
Conversion mode	Medium conversion, storing and forwarding/straight-through
MAC address table	1K
Buffer space	1Mbit
Flow control	Full duplex state: flow control; half-duplex state: back pressure mode
Delay	9.6us
Bit error rate	<1/1000000000
MTBF	100,000 hours
LED	100M (twisted pair rate 100M), TP1/2/3/4/5 Link(twisted pair link/action); P1 (power supply P1 connected), P2(power supply P2 connected)
Power	12/24/48 VDC,18 ~ 30VAC input
Power consumption	3W
Operating temperature	Normal:-10~60°C ;-T(wide temperature range): -40~75°C
Operating humidity	5%~90%
Storage temperature	-40~85°C
Storage humidity	5%~95% (non-condensing)
Installation	Din rail installation, wall mounting installation
Dimensions	115mm×30mm×70mm (height * width * depth)

IP30 Metal Case 5 Ports 10/100M Panel Mount Ethernet Switch 3W
